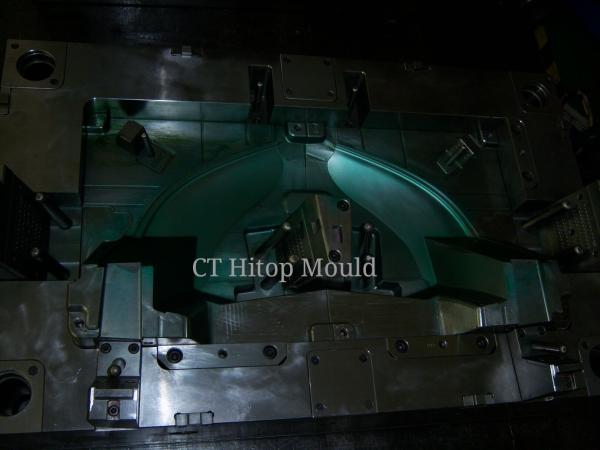

Plastic injection Mold big size family mould DME hot runner tooling
P 20 AB plates
Part name: Fender Finisher
Plastic resin material : ABS
Mold size : 650mm 1050mm 780mm
Part size : 450mm 170mm 150mm
AB plates : P20
Mold base : S50C
Cavity : 1 + 1 , family mold
Parting line locks : yes
Steel : 1.2311
Mold standard : DME
Runner : Yudo hot drop
Gate type : Sub gate
Slider : 4
Lifter : 2
| Application: | Auto mobile | Software: | UG ,ProE, Solidworks Auto-Cad |
| Cavity: | Multi Cavity , single cavity, family mold | Certificate: | ISO9001-2008 |
| Mould Life: | 100- 1 million shots | Mold base supplier | LKM |
| Mold export: | Yes.USA / Europe / India | Standard: | LKM DME HASCO |
| Steel heat treatment | Yes. | Lead time: | 20-80 days |
| Gate type: | Sub gate, pin gate, edge gate, banana gate | Runner: | Cold /hot Runner |
| | | |
| Dimensions report: | Yes. As per 2D drawing | Schedule report: | Yes, weekly report with pics |
| | | |
| Molding parameter availability: | Yes | Mold design for free: | Yes, 2D and 3D |
What we can supply:
1. Auto parts mould
bumper mould, auto lights mold, handbrake , instrument desk ,
ashtray mold , storage mold , panel mold , dashboard mold, car door
mold , interior plastic parts.
2. Motorcycle spare parts mould
rear view mirror mould,helmet mould,helmet glasses mould,fender
mould,motorcycle side plate mould
3. Industrial products mould
holder mold, cover mold, pallet mould, crate mould
4. Commodity mould
food container(thin wall thickness) mould, tray mould, box mould,
chair mould, toilet seat mould, table mould, desk mould, display
case mold, laundry baskets mould, shopping basket mould, hanger
mould, helmet mould, etc.
5. Home appliance mould
air cooler mould, air conditioner mould, washing machine mold,
refrigerator mould, blender mould, vacuum cleaner mould, steam iron
mould, massage chair mould, etc.
6. Medical device plastic cover holder body
HITOP MOLD, Why this name ? HITOP---- High quality , Top service
and Mutual benefits in the mold business is our policy as well as
the objective
With the capacity of 500-900 sets molds per year, HITOP can serve
1) Mold making (die-casting and injection). 70% of the molds to
export to all over the world
2) Injection and die-casting
3) Rubber & silicone mold and molded parts
4) Silk screen & pad printing and simple assembly
5) Vacuum forming
6) Prototype
7) Rapid mold
