Ruida control board portable acrylic laser cutting machine with
CW5200 water chiller
Brief Introduction:
Apart from the same features and advantages as those of the HSC
series single head cutting machine, the HSD series double head
laser cutting machine incorporates two laser systems. The two CO2
laser heads installed on the double head cutting machine can work
at the same time, doubling working efficiency while remaining the
same cutting performance, so this CO2 glass tube laser machine is a
magic tool for clients in the mass production industry.
With the help of the double head laser machine, the goal to
minimize cost and maximize output at the same time is easily
achieved with the following units:
Imported UK joint axletree set adjusting the tool automatically;
Stepper motor and driver;
64 bits DSP chip and automatic off-line control system;
Six balanced straight-line guide rail;
Laser lens imported from Singapore;
Chinese-English LCD manifestation mold;
Cooling system with constant temperature.

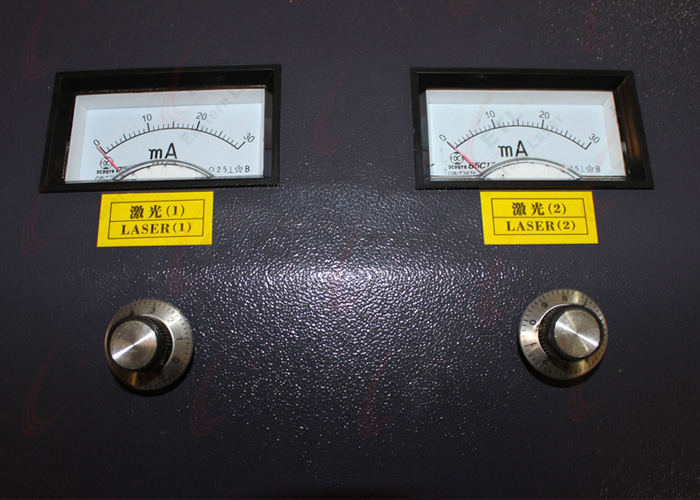

Detailed Pictures:
Applications:

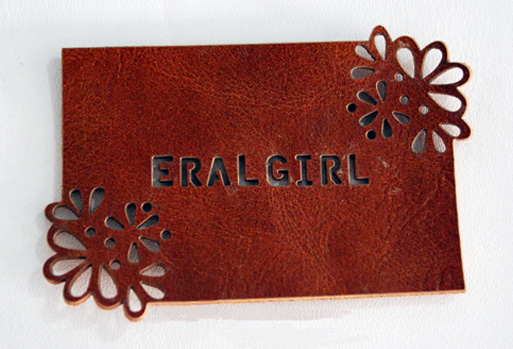

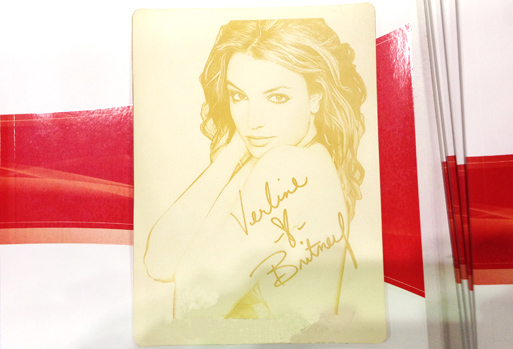

The double head cutting machine is well suitable for many
industries like apparel, leather, plush toy, computerized
embroidery and clipping, electronics, model, artworks and crafts,
advertising decoration, packaging and printing, paper product and
so on. And it is often used as cloth laser cutting machine, paper
laser cutting machine, model laser cutting machine, etc.
Technical Parameters of HSD Series Double Head Laser Cutting
Machine
Laser power | Two pcs 65W/80W laser tube |
Laser type | CO2 glass tube |
Operating voltage | AC220V(or 110V)±10% 50Hz/60Hz |
Maximum cutting speed | 2000mm/s |
Repeat position accuracy | 0.01mm |
Minimum character | English letter: 1*1mm |
Operating temperature range | 5-45℃ |
Resolution | ≤4500dpi |
Control mode | DSP |
Transfer mode | By USB port or U flash disk |
Laser tube service life | 3500 hours |
Software environment | Windows 2000/XP/Win7 |
Cooling type | Water cooling system |
Acceptable graphic format | BMP, PLT, DST, AI, DXF, GIF, JPG, PCX, TGA, TIFF, etc. |
Acceptable software | Self software/ CorelDraw/ AutoCAD |
Cutting depth | 0-30mm(depending on different materials) |
Slope engraving | Yes, slope can be designed discretionarily |
Packing type | Wooden case |
HSD Series Related Models
Model | Effective working travel | Weight |
HSD-6040 | 600*400mm | 205kgs |
HSD-9060 | 900*600mm | 240kgs |
HSD-1080 | 1000*800mm | 280kgs |
HSD-1280 | 1200*800mm | 305kgs |
HSD-1390 | 1300*900mm | 330kgs |
HSD-1610 | 1600*1000mm | 410kgs |
Standard Accessories
A 65W or 80W laser tube
A set of mirrors (a laser focus lens and three laser mirrors
installed)
A CW3000 water chiller for laser
A set of auto feeding system
A feeding shelf
A set of air pump and air tube for blowing
A laser control unit
An air-sucking system
A USB cable
A software CD
A user manual and a demo CD
A toolbox
