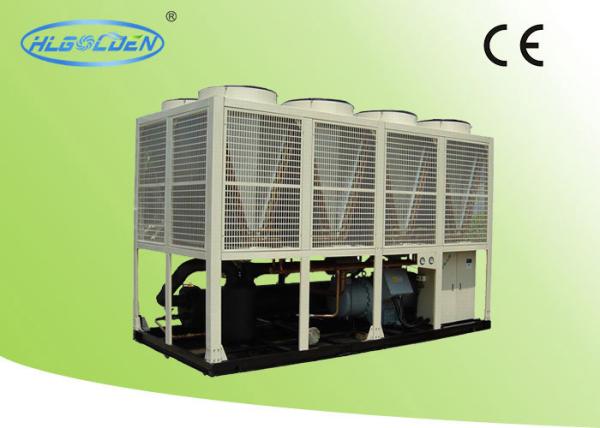

Heating And Cooling R22 HVAC Water Chiller Units with Environment Protection
1.Description:
HUALI air chiller adopt the international famous branded screw type
compressor , and equip with the high
efficient copper as condenser , evaporator and famous branded
control components, which make the chiller
unit feather as compact size, low noise and vibration , high
cooling capacity, easy operate and long service
life.
Feature:
1. The air chiller adopts high effiency Hanbell compressor, COP can
reach above 3.5.
2. R22 is standard refrigerant, R407C,R410A,R404A,R134A is option.
3. Cooling capacity:101kw-675kw.(29Ton-192Ton).
4. Input power supply:Input power: 3P 380V 50Hz, Allowable
fluctuate voltage: ±10%, allowable voltage
difference in phase: ±2%.
5. Intelligent control, English touch screen.
6. Energy control: 25%-50%-75%-100% four step levels energy
adjustment.
2.Specification:
Heating and cooling screw chiller |
Model HLWH～ | 360DM |
360DHM |
Rated Cooling Capacity
| Cooling Capacity (KW) | 358 |
Comp. Input Power (KW) | 116.4 |
Rated Heating Capacity
| Heating Capacity (KW) | 387 |
Comp. Input Power (KW) | 114.4 |
Refrigerant | R407C |
Power Supply | 380V/ 3ph/ 50Hz |
Number of Refrigeration Circuit | 2 |
Capacity Control (%) | 0, 25, 37.5, 50, 62.5, 75, 87.5, 100 |
Refrigerant Charge (Kg) | 114 |
Air Cooled Heat Exchanger | Ripple Aluminum Fins Around Copper Pipe |
Water Cooled Heat Exchanger
| Dia.of Pipe (inch) | 5" |
Water Side Max Pressure (MPa)
| 1 |
Chilled Water Flow(m3/h) | 61.6 |
Water Pressure Drop (kPa) | 42 |
Flow of Hot Water(m3/h) | 66.6 |
Axial Fan
|
Air Flow×1000m3/h
| 172.8 |
Power×Qty (KW) | 1.2×12 |
Running Noise dB(A) | 75 |
Total Weight (Kg) | 5620 |
Running Weight(Kg) | 6040 |
3. Installation Drawing:
4.Main Parts:
Main accessories | Model | Original place | Brand |
Compressor | RC2 | Shanghai | HANBELL |
Fan Motor | YSWF | Hangzhou | MAER |
Expansion Valve | TRAE | China | ALCO |
Filter | Standard | Guangzhou | UAR |
Thermorelay | GTH/TK | Suzhou/Shanghai | LG/FUJI |
Contactor | GMC/SC | Suzhou/Shanghai | LG/FUJI |
Microcomputer
control monitor | DM | Guangzhou | PUNP |
5. Real Photos:
