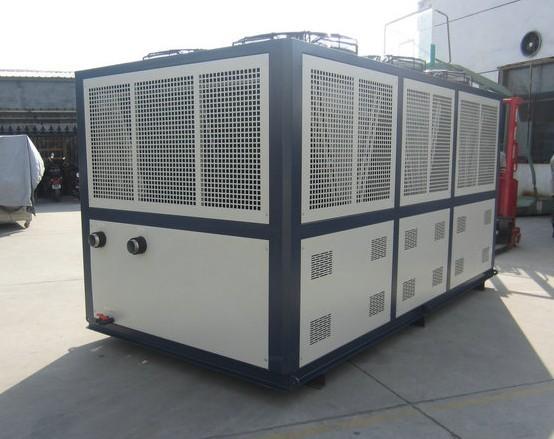

CE / ISO Air Cooled Screw Chiller With Semi Enclosed Compressor
Quick Detail:
1. Temperature controlled7-35℃,precision controlled ±2℃
2. Max. Running current:463.2A
3. Refrigerant charge:104×2KG
4. Certification:CE & ROHS
5. Compressor type: Semi-enclosed screw-type
6. Refrigerating capacity: 688000Kcal/h
7. Warranty:1 year
Description:
Compressor high and low voltage protection, internal overheating
protection
Low water flow alarm devices: Low water temperature anti-icing
alarm
Compressor imported from Europe, America and Japan(Hanbell Levin
Beverly)
Oxygen-free welding from refrigeration system, reduce the oxides
and smooth the surface
Denmark Danfoss and USA Eco throttle components
Denmark Danfoss solenoid valve filter
Stainless steel plate, coil type, shell and tube, finned high
efficiency heat exchanger
RS485 communication function for automated management(optional)
Brands OMRON, FUJI, TE, LG, MOELLER, ABB and WEST for electric
appliances
Control mode: imported microcomputer or PLC(optional)
Perfect safety protection, fault display, easy repair and
maintenance even without professionals
High-efficiency evaporator and condenser which can save energy by
more than 30%
Temperature control range:7-35℃, Temperature control accuracy:±2℃
Specifications:
ITEM | UNIT | AC-800AD |
Refrigerating capacity | Kcal/h | 688000 |
| KW | 800 |
Power Input | KW | 274.4 |
Maximum Running Current | A | 463.2 |
Energy adjust range | % | 100-75-50-25-0 |
Power supply |
| 3N-50HZ-380V |
R22 Refrigerant | Filling Volume | kg | 104×2 |
| Control mode |
| Thermostatic Expansion valve |
Compressor | Model |
| Screw semi-hermetic |
| Power | Kw | 130×2 |
Condenser |
| Copper Coil With Aluminium Fine |
Fan | Type |
| Low Noise Aluminium Blade Axial Fa |
| Air Flow | M3/h | 280000 |
Evaporator | Model |
| Shell and Tube |
| Chilled water flow | M3/h | 137.6 |
| Water resistance | Kpa | 47 |
| Water inlet/outlet diameter | DN | 150.0 |
Protecting equipment |
| High/Low Pressure switch, Anti-frost Protector, Fusible Plug,
Overload Protector, Motor Overheat Protector, Automatic Temperature
Sensitive Switch, Anti-phase Protector |
Size(L×W×H) | mm | 8000×2260×2570 |
Weight | kg | 6070 |
Running Weight | Kg | 6310 |
Competitive Advantage:
Our core competitiveness:advance technology,the pioneer of TCU
industry, Convenient and efficient nationwide service network
Excellent R&D team
Customization thick copper pipe 1.0-1.2
Our core concept:Innovation, high-quality, integrity, service,
focus
High density heat insulation cotton and aluminum foil
Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST
The thickness of our machine rack is 1.2mm
We have the production certification organic heat transfer material
heater
Applications:
Aluminium Alloy: Car accessories
Magnesium alloy: Communication device, navigation
Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating
Presses,Molding Presses, Rubber Presses, Jacketed Vessels,
Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt,
Vulcanizing Presses.
Die casting,plastic Injection molding, light guide plates,
connectors, Chemical engineering, Shoe materials, Pringting and
dyeing, Drying and banburying.
Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of
international standards designs and high quality products, applying
ourselves to providing high standard products and whole-journey
nanny service. Our products are widely applied in plastic injection
molding, light guide plates, connectors, chemical engineering,
compression casting, reaction kettles, rubber tires, calendaring,
shoe materials, printing and dyeing, drying and banburying and tec.
And widely sold to Japan, America, Italy, Brazil, Southeast Asia,
Africa and etc. The brand recognition from the market is sufficient
to prove that our temp. control system can replace the imported
similar products. Belows are our honor clients.
