Hot Water Heater Mold Temperature Controller Unit , Industrial
Water Chiller
Quick Detail:
1. Temp. Control accuracy: PID±1℃
2. Range of temperature control:+15℃-120℃ for incoming water
3. Certification:CE & ISO
4. Controller:microcomputer
5. Heating capacity: 9KW
6. Maximum power consumption: 10KW
7. Alarm function:Excess temperature, open phase, oil starvation,
overloading, reverse turn
Description:
- Explosion-proof equipment(optional)
- Air blowing and return water function(optional)
- Thermometer for return water
- Automatic air-exhausting function after startup
- Switchover of heating power
- Instant cooling shut-down function(optional)
- RS485 communication function for automated management(optional)
- BY-PASS pressure release loop for hot water
- Customizable multi-point temperature control unit
- Customizable horsepower and heating power of water pump
- Brands OMRON, FUJI, TE, LG, MOELLER, ABB, and WEST for electric
appliances
- Range of temperature control: +15℃-180℃ for incoming water
- Stainless steel integrated pipelines for less pipe resistance and
rust
- Control mode: imported microcomputer or PLC(optional)
- Perfect safety protection, fault display, easy repair and
maintenance even free of professionals
Specifications:
ITEM | UNIT | AWM-10A |
Temp control range | ℃ | Inlet water temperature +15℃-120℃ |
Temp control accuracy | ℃ | PID±1℃ |
Power supply |
| AC3∮380V 50HZ 3P+E(5M) |
Heat transfer medium |
| Water |
Cooling method |
| direct Cooling |
Heating capacity | KW | 9 |
Horsepower of pump | hp | 1 |
Working flow of pump | L/min | 33 |
Working pressure of pump | Kg/cm2 | 2.0 |
Max. power consumption | KW | 10 |
Alarm function |
| Open phase/water depletion/excess temperature/overloading/reverse
turn |
Cooling water pipe | inch | 1/2 |
Circulating water pipe | inch | 3/8×4 |
Size(L×W×H) | mm | 620×325×645 |
Weight | kg | 72 |
Competitive Advantage:
1. Our core competitiveness:advance technology,the pioneer of TCU
industry, Convenient and efficient nationwide service network
2. Customization thick copper pipe 1.0-1.2
3. Our core concept:Innovation, high-quality, integrity, service,
focus
4. High density heat insulation cotton and aluminum foil
5. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and
WEST
6. The thickness of our machine rack is 1.2mm.
7. Strict quality control system
8. We have the production certification organic heat transfer
material heater

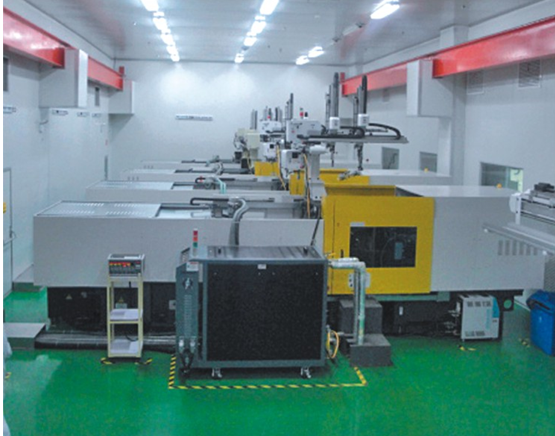

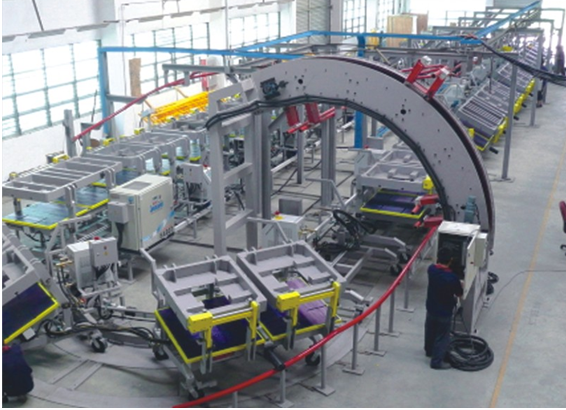

Applications:
Injection industry
Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating
Presses,Molding Presses, Rubber Presses, Jacketed Vessels,
Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt,
Vulcanizing Presses.
Die casting,plastic Injection molding, light guide plates,
connectors, Chemical engineering, Shoe materials, Pringting and
dyeing, Drying and banburying.
Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of
international standards designs and high quality products, applying
ourselves to providing high standard products and whole-journey
nanny service. Our products are widely applied in plastic injection
molding, light guide plates, connectors, chemical engineering,
compression casting, reaction kettles, rubber tires, calendaring,
shoe materials, printing and dyeing, drying and banburying and tec.
And widely sold to Japan, America, Italy, Brazil, Southeast Asia,
Africa and etc. The brand recognition from the market is sufficient
to prove that our temp. control system can replace the imported
similar products. Belows are our honor clients.
