Commercial Air Cooled Water Chiller Unit 37.6 KW for Machinery
Industry
Product Description:
Golden chiller consists of compressor, control panel, condenser,
evaporator
and water pump, water tank.
You can choose the type and brand of these components yourself .
1. Compressor
Our standard industrial water cooled chiller use the famous
Copeland scroll compressors. If you have
requirement of compressor, pls tell us the brands you need.
2. Control Panel
Normally, scroll chiller is equipped key control panel with LED
display (Punp Brand).
3. Condenser
Finned type condenser: Ripple aluminum fins around copper pipe, can
be titanium coil tube type or
stainless plate type.
4.Evaporator
The evaporator of our air cooled chiller is shell and tube type.
5. Water Pump
The air cooled industrial chiller has inside water pump and water
tank, easy installation, it doesn’t need
to compact cooling tower and other water tank.
6. Water Tank
Different models with different sizes of water tank: 80L~270L.
Product Function:
Injection Industry
Golden chiller can accurately control the temperature of mold which
can improve the quality and
production rate.
Electronic Component Industry
Golden chiller can stabilize the molecular structure of electronic
component inside. This can improve
the FTQ and product time.
Machinery Industry
Golden chiller can cool down the oil for the machine and stabilize
the oil temperature and pressure.
It’ll extend the useful life of oil. And it can also improve
mechanical lubrication efficiency.
Electroplating Industry
The temperature of electroplate can be controlled by our chiller.
It can improve the density and smooth
of electroplate and production efficiency.
Food & Drink Processing Industry
The temperature of processed food and drink will be too high to be
packaged. Golden chiller can cool
it down through food grade stainless steel heat exchanger.
Product Detail:
Model HLLA ～ | 12.5SI |
Rated Cooling Capacity | ×1000 kcal/h | 32.3 |
| KW | 37.6 |
Input Power (KW) | 12.0 |
Comp. Input Power×Qty. (KW) | 9.3 |
Chillded Water Pump Model | HT50-17 |
Chilled Water Pump Power (KW) | 1.5 |
Comp. Current (A) | 20 |
Power Supply | 3φ-380V-50HZ |
Safety Protection | Phase reversion protection,
Phase lack protection,
Overload current protection,
Discharge air temp. protection,
Low & High pressure protection,
Low temp. protection, Water flow protection, |
Number of Refrigeration Circuit | 1 |
Capacity Control (%) | 0, 100 |
Refrigerant | R22 |
Condenser | Ripple Aluminum Fins around Cooper Pipe |
Power lnput of Fan (KW) | 1.2 |
Evaporator | Shell and Tube Type |
Water Side Max Pressure (MPa) | 1 |
Dia.of Pipe to Evaporator (inch) | 2" |
Chilled Water Flow (L/m) | 107.8 |
Evaporator Water Pressure drop (kPa) | 28 |
Running Noise dB(A) | 75 |
Tank Volume (L) | 180 |
Total weight (Kg) | 510 |
Dimension L×W×H | 1500×1100×2200 |

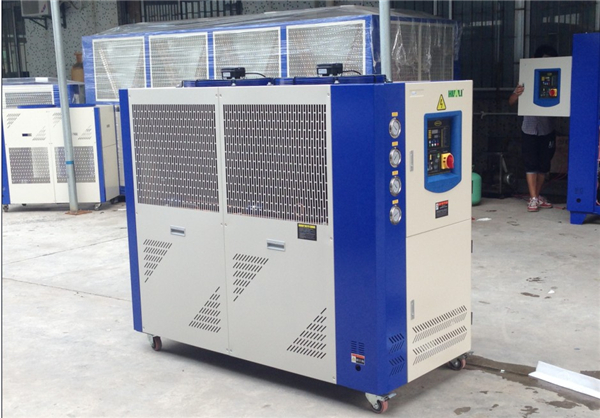

Product Show:
