6 Cavity Bottle Injection Machine Automatic For Mineral Water
Processing
Quick Detail:
1, Automation: TOTALLY automatic
2, Capacity: 6000BPH
3, Bottle type: PET bottles
4, Auxiliary machine needed: YES
Description:
Bottle blowing machine is used to blow PET bottles from 100ml to 2L
including mineral bottles, edible oil bottles, carbonated water
bottles, and juice bottles and etc. The shape of the PET bottles
can be various according to client. We can help to sculpt the
bottles and confirm with client before making bottle moulds.
Applications and features:
1, The bottle blowing machine can be widely applied in food, drink,
dairy, cosmetic, medical, chemical industrial and etc;
2, The bottle blowing machine is used to develop different bottles
for explore more market;
3, The bottle blowing machine has the compact structure for the
preform heating, blowing, and bottle forming are realized in one
machine;
4, All the movements of bottle blowing machine are driven by the
air cylinder, no need the hydraulic oil and even no pollution.
5, Auxiliary machines are needed during blowing including LP (Low
pressure) air compressor, HP (High pressure) air compressor, air
dryer, air filters, air tank, and mould chiller.
Working principle and diagram:
Specifications:
| Main parameter: |
| Model | DY-6 |
| Productivity | Depend on bottle design | 5000-5500PCS/H 1500ml carbonated |
| Product type | Body diameter | 20mm-100mm |
| Height | 50mm-350mm |
| Neck diameter | 15mm-38mm |
| Mold | Cavity | 6cavities |
| Mold thick | 200mm |
| Mold | 800*800mm |
| Main machine power | Electrical source power | 380v 3Phase /220v 3Phase 50/60HZ |
| Rated Power | 40kw |
| Really use power | 20kw |
| Cooling water | Cooling water | 20L/min |
| Size | L*W*H | 2808*1958*1920mm |
| Weight | 4500kg |
| Auxiliary equipment(preform unscrambler) | L*W*H | 2000*950*2480mm |
| Weight | 250kg |
| Resin available | | PET |
Components
| Item | Part | Brand | Origin |
| 1 | Pneumatic components | AIRTAC | Taiwan |
| 2 | Turning cylinder | FESTO | German |
| 3 | High pressure air blowing valve | PARK | USA |
| 4 | Low pressure operation valve | PMC | Korea |
| 5 | PLC | Delta | Taiwan |
| 6 | Touch screen | Delta | Taiwan |
| 7 | High pressure muffler | SMC | Japan |
| 8 | Oily water separator | AIRTAC | Taiwan |
| 9 | Photoelectric switch | AUTONICS | Korea |
| 10 | Switching power | WM | Taiwan |
| 11 | Air switch | TAIAN | Taiwan |
| 12 | Relay | IDEC | Japan |
| 13 | Finger cylinder | MINDMAN | Taiwan |
| Note | All of the electrical components adopts CE,UL,CCC approved
international advanced high-tech product. |
| | | | |
Competitive Advantage:
- Stable performance with advanced PLC.
- Automatic preform conveyer to save human cost.
- Two ways of operating: automatic and manual.
- Safe,reliable and unique design of the position of valve to make
the pneumatic diagram in the machine easier to understand.
- Low cost,high efficiency,easy operation and maintenance etc,
profited from the fully automatic technological process.
- Ideal cooling system make the finished bottles without any flaws.
- Easy for you to install, test and start up.

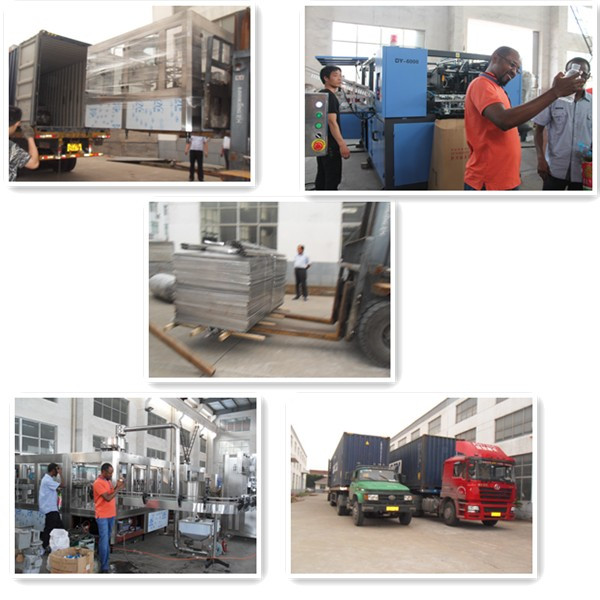

Customer Inspection For The Machine & Shipment
