75.2 KW Commercial Water Chiller Machine / Air Cooled Chiller Box
Product Description:
Golden industrial air cooled chiller:
1. Convenient for installation and operation;
2. Integrated electronic control, microcomputer display.
3. Onestop automatic intelligent temperature control: in different
environment, user does not
need to change setting due to it will automatically switch to
appropriate operating temperature.
Questions about our water chiller and product:
1. How to choose suitable industrial air cooled chiller?
* Cooling capacity.
* Water flow.
* Inlet temperature and outlet temperature.
2. Why do you choose our company?
* CE certified.
* High quality.
* Competitive price.
* Beautiful appearance.
3. What is the MOQ, Payment, Packaged, Warranty?
* MOQ: 1 Set.
* Payment: 30% as deposit, 70% before delivery.
* Packaged: Wooden packaged.
* Warranty: For one year.
Product Detail:
Model HLLA ～ | 25DI |
Rated Cooling Capacity | ×1000 kcal/h | 64.7 |
| KW | 75.2 |
Input Power (KW) | 22.5 |
Comp. Input Power×Qty. (KW) | 9.3×2 |
Chillded Water Pump Model | HT50-17 |
Chilled Water Pump Power (KW) | 1.5 |
Comp. Current (A) | 37.2 |
Power Supply | 3φ-380V-50HZ |
Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection,
Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection, |
Number of Refrigeration Circuit | 2 |
Capacity Control (%) | 0, 50, 100 |
Refrigerant | R22 |
Condenser | Ripple Aluminum Fins around Cooper Pipe |
Power lnput of Fan (KW) | 2.4 |
Evaporator | Shell and Tube Type |
Water Side Max Pressure (MPa) | 1 |
Dia.of Pipe to Evaporator (inch) | 2" |
Chilled Water Flow (L/m) | 194.8 |
Evaporator Water Pressure drop (kPa) | 28 |
Running Noise dB(A) | 75 |
Tank Volume (L) | 270 |
Total weight (Kg) | 880 |
Dimension L×W×H | 2200×1180×2200 |

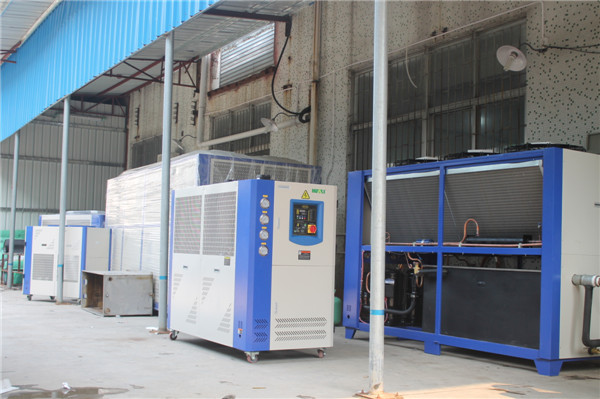

Product Show:
