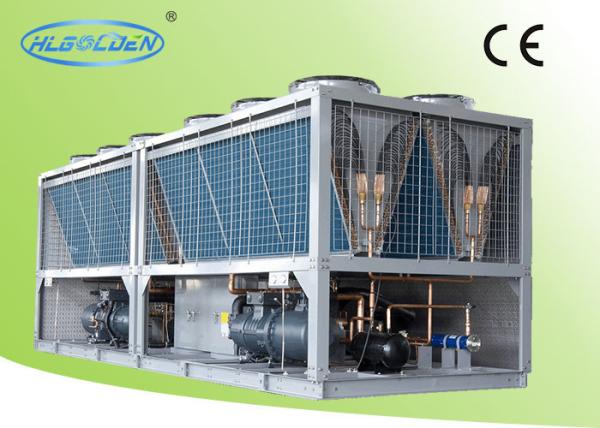

Air To Water Heat Pump Air Cooled Water Chiller Unit 379 KW - 675
KW
Model HLWA～ | 380D | 420D | 490D | 520D | 560D | 610D | 680D |
Rated Cooling Capacity | X 1000Kcal/h | 325.7 | 357.4 | 421.2 | 445.0 | 486.8 | 527.1 | 580.2 |
KW | 379 | 416 | 490 | 518 | 566 | 613 | 675 |
Comp. lnput Power×Qty (KW) | 58.1×2 | 63.2×2 | 71.2×2 | 74.9×2 | 82.4×2 | 89.9×2 | 99.9×2 |
Refrigerant | R22 |
Power Supply | 380V/ 3ph/ 50Hz |
Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection,
Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection. |
Number of Refrigeration Circuit | 2 |
Capacity Control (%) | 0, 25, 37.5, 50, 62.5, 75, 87.5, 100 |
Refrigerant Charge (Kg) | 104 | 112 | 136 | 142 | 156 | 168 | 186 |
Condenser | Ripple Aluminum Fins Around Copper Pipe |
Evaporator
| Dia.of Pipe (inch) | 5" | 5" | 3"×2 | 3"×2 | 4"×2 | 4"×2 | 4"×2 |
Water Side Max Pressure (MPa) | 1 |
Chilled Water Flow(m3/h) | 65.1 | 71.5 | 84.2 | 89.0 | 97.4 | 105.4 | 116.0 |
Water Pressure drop (kPa) | 42 | 54 | 44 | 52 | 54 | 55 | 65 |
Axial Fan
| Air Flow×1000m3/h | 172.8 | 172.8 | 230.4 | 230.4 | 230.4 | 321.6 | 321.6 |
Power×Qty (KW) | 1.2×12 | 1.2×12 | 1.2×16 | 1.2×16 | 1.2×16 | 2.0×16 | 2.0×16 |
Running Noise dB(A) | 72 | 72 | 72 | 72 | 75 | 75 | 75 |
Total Weight (Kg) | 4430 | 4550 | 5340 | 5420 | 5500 | 5860 | 6320 |
Running Weight(Kg) | 4750 | 4970 | 5800 | 5950 | 6040 | 6480 | 6900 |
- Rated Cooling Capacity Based on: DB Temperature 35℃/WB Temperature
24℃.
Chilled water inlet/outlet temp. 12℃/7℃, Fouling factor:
0.088㎡.°C/KW. |
2. Chilled Water Range: 5～20℃; Lowest Ambient Temperature:15℃～43℃; |
3. Heat recovery unit water in/out temperature: 50℃/55℃; |
4.Changes of Specification for lmprovement May Be made without
Notice. |
Advantage :
1 . The compressor is world famous brand, with high efficiency, low
noise level. less wearing and long
operation time.
2 . The unit is of high performance as they are made of the
condensers and evaporators of grooved copper
pipes, and high quality components,by specialized process.
3 . The unit is of easy to operate, and friendly interfaced, as
they employ leading brand of PLC, 64K color
touch screen and other control elements.
4 . The energy saving for Multi-capacity regulation, resulation in
cost cut down for operation and maintenance.
5 . Easy and convenient:it's easy to install in many places,such as
the garage,balcony,kitchen etc.
6. All-weather use:it's not affected by the windy,rainy and snowy
weather.
7. Flexible: it can installed on roof and no engine room is needed.
8 . Working without water-cooling tower,it provides easier
installation and higher mobility.Independent cooling system. It's a
wonderful
choice for places lacking of water or those water-cooling tower is
not applicable.
