Brand Name :	GOLDEN
Model Number :	HLWH-380DH~680DH
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C, MoneyGram
Supply Ability :	500pcs per month
Delivery Time :	10 working days after received your payment

Add to Cart

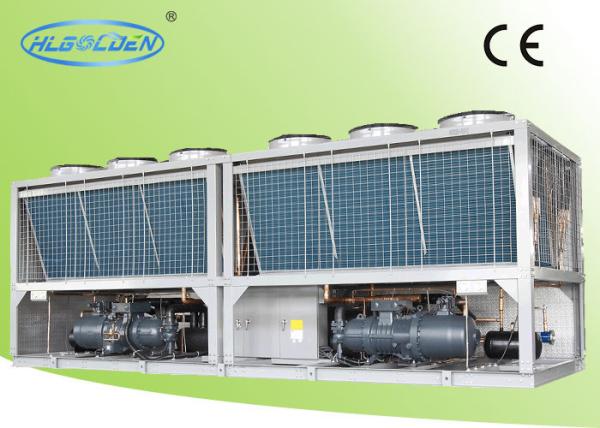

High Efficiency Air Conditioning Air Cooled Water Chiller with Double compressor

Model HLWH～		380DH	420DH	490DH	520DH		570DH		610DH		680DH
Rated Cooling Capacity	Cooling Capacity (KW)	379	416	490	518		566		613		675
	Comp. Input Power (KW)	116.2	126.4	142.4	149.8		164.8		179.8		199.8
Rated Heating Capacity	Heating Capacity (KW)	408	447	520	549		601		652		720
	Comp. Input Power (KW)	109.3	119.1	134.0	141.0		155.2		169.3		188.3
Refrigerant		R22
Power Supply		380V/ 3ph/ 50Hz
Safety Protection		Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection.
Number of Refrigeration Circuit		2
Capacity Control (%)		0, 25, 37.5, 50, 62.5, 75, 87.5, 100
Refrigerant Charge (Kg)		114	122	146	150	164		178		196
Air Cooled Heat Exchanger		Ripple Aluminum Fins Around Copper Pipe
Water Cooled Heat Exchanger	Dia.of Pipe (inch)	5"	5"	3"×2	3"×2	4"×2		4"×2		4"×2
	Water Side Max Pressure (MPa)	1
	Chilled Water Flow(m3/h)	65.1	71.5	84.2	89.0	97.4		105.4		116.0
	Water Pressure Drop (kPa)	42	54	44	52	54		55		65
	Flow of Hot Water(m3/h)	70.2	76.9	89.4	94.3	103.4		112.2		123.8
Axial Fan	Air Flow×1000m3/h	172.8	172.8	230.4	230.4	230.4		321.6		321.6
	Power×Qty (KW)	1.2×12	1.2×12	1.2×16	1.2×16	1.2×16		2.0×16		2.0×16
Running Noise dB(A)		75	75	75	75	75		75		75
Total Weight (Kg)		5620	5800	6240	6430	6600		6960		7320
Running Weight(Kg)		6040	6280	6680	6850	7100		7460		7960

Heat recovery

Note :

1. Rated Cooling Capacity Based on: DB Temperature 35℃/WB Temperature 24℃

Chilled water inlet/outlet temp. 12℃/7℃, Fouling factor: 0.088㎡.°C/KW.

2. Rated Cooling Capacity Based on: DB Temperature 7℃/WB Temperature 6℃

Hot water inlet/outlet temp. 40℃/45℃; Hot water range: 45℃～45℃;

2. Chilled Water Range: 5～20℃; Lowest Ambient Temperature: -5℃～43℃;

3. Heat recovery unit water in/out temperature: 50℃/55℃;

4.Changes of Specification for lmprovement May Be made without Notice.

Feature :

This Air source water chiller (heat pump) is a kind of water chiller that can be connected to all sorts of fan

coil unit.

This Air source water chiller (heat pump) can realize cooling / heating.

This Air-source water chiller (heat pump) can be widely used in hotel, shpping mall, office building, exhibition,

hospital, Gym, plant and other publication areas required for comfortable air conditioning and daily hot water.

Beside above, it can meet various technological air-conditioning required from different industrial fields.

Unit within heat recovery,provide hot water for daily life.

If you have any enquiry about Air source water chiller (heat pump) , pls . contact us freely!
