Brand Name :	GOLDEN
Model Number :	HLWA-380DHM~680DHM
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C, MoneyGram
Supply Ability :	500pcs per month
Delivery Time :	10 working days after received your payment

Add to Cart

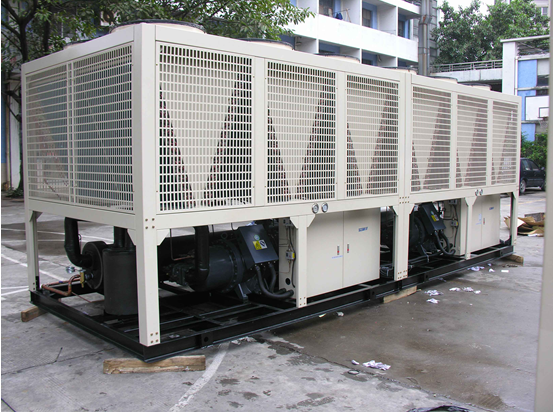

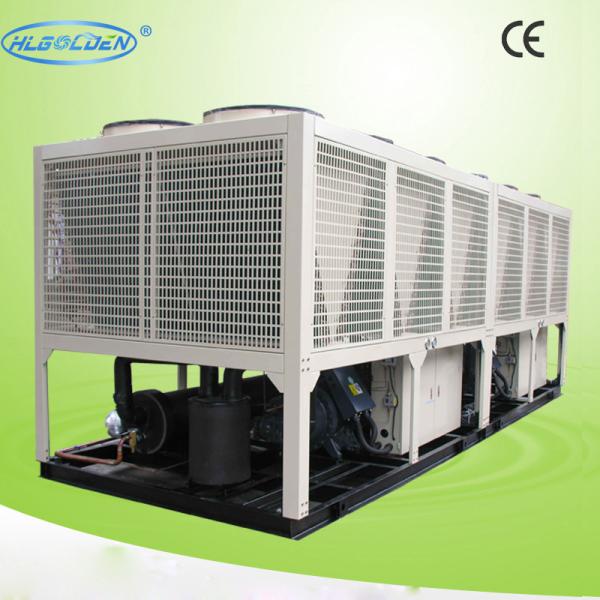

Custom Heat Recovery Air Cooled Water Chiller Air Conditioner Chiller

Model HLWA~				380DHM			420DHM		480DHM	520DHM	560DHM	620DHM			680DHM
Rated Cooling Capacity		X 1000Kcal/h		307.8			336.2		399.0	421.3	460.9	503.9			543.4
		KW		358			391		464	490	536	586			632
Comp. lnput Power×Qty (KW)				58.2×2			63.8×2		70.5×2	74.1×2	82.4×2	90.2×2			98.9×2
Refrigerant				R407C
Power Supply				380V/ 3ph/ 50Hz
Safety Protection				Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection.
Number of Refrigeration Circuit				2
Capacity Control (%)				0, 25, 37.5, 50, 62.5, 75, 87.5, 100
Refrigerant Charge (Kg)				104		112			136	142	156	168			186
Condenser				Ripple Aluminum Fins Around Copper Pipe
Evaporator	Dia.of Pipe (inch)			5"		5"			3"×2	3"×2	4"×2	4"×2			4"×2
	Water Side Max Pressure (MPa)			1
	Chilled Water Flow(m3/h)			61.6		67.2			79.8	84.3	92.2	100.8			108.7
	Water Pressure drop (kPa)			42		54			44	52	54	55			65
Axial Fan	Air Flow×1000m3/h			172.8		172.8			230.4	230.4	230.4	321.6			321.6
	Power×Qty (KW)			1.2×12		1.2×12			1.2×16	1.2×16	1.2×16	2.0×16			2.0×16
Running Noise dB(A)				72		72			72	72	75	75			75
				4430		4550			5340	5420	5500	5860			6320
				4750		4970			5800	5950	6040	6480			6900

Heat Recovery
Refrigerant Charge (Kg)					110	118		142		148	160		174	192
Heat Reclaimed Volume (kw)			X 1000Kcal/h		92.3	100.9		119.7		126.4	138.3		151.2	163.0
			KW		107	117		139		147	161		176	190
Heat Recovery	Dia.of Pipe (inch)				2-1/2"	2-1/2"		2"×2		2"×2	2"×2		2"×2	2"×2
	Water Side Max Pressure (MPa)				1
	Reclaimed Water Flow (m3/h)				18.5	20.2		23.9		25.3	27.7		30.2	32.6
	Water Pressure drop (kPa)				26	26		27		27	30		30	34
Total Weight (Kg)					4790	4910		5920		6040	6260		6480	6980
Running Weight(Kg)					5280	5440		6500		6650	6760		7240	7720

Note :

1. Rated Cooling Capacity Based on: DB Temperature 35℃/WB Temperature 24℃

Chilled water inlet/outlet temp. 12℃/7℃, Fouling factor: 0.088㎡.°C/KW.

2. Chilled Water Range: 5～20℃; Lowest Ambient Temperature:15℃～43℃;

3. Heat recovery unit water in/out temperature: 50℃/55℃;

4.Changes of Specification for lmprovement May Be made without Notice.

Feature:

Advance control system, steady quality and reliable features.

1 . Micro-computer control intelligently, English display, and friendly interface. Operating information is clear at a glance.

2 . Micro-computer and electrical control elements are brand products and imported from world. The products has

good quality, and reliable features

3 . The components and system pipes layout reasonable.

4 . The unit uses high efficient heat exchanger. It adopts outdoor structure design and system matching with

small volume, lightweight, and less area occupied.

5 . High efficiency heat exchanger ,ecological refrigeration units , reduced energy consumption .
