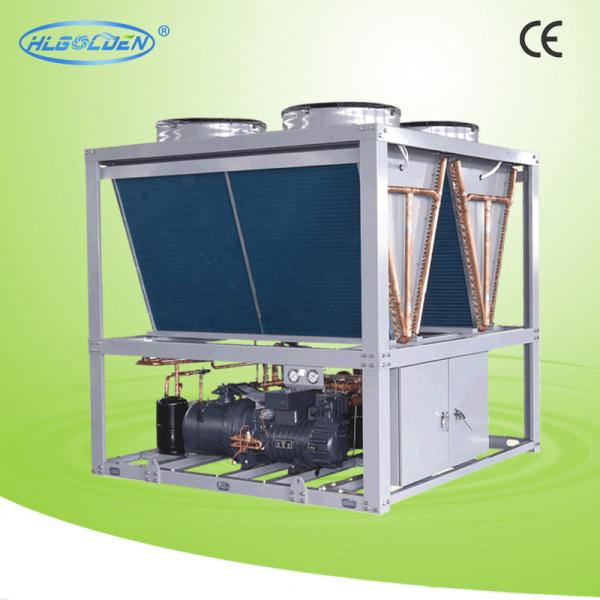

OEM HVAC Air Cooled Air Conditioning System , Air Cooled Split Unit
Model HLWA～ | 110S | 160S | 210S | 240S | 280S | 310S | 340S |
110SH | 160SH | 210SH | 240SH | 280SH | 310SH | 340SH |
Rated Cooling Capacity
| X 1000Kcal/h | 93.6 | 133.6 | 178.7 | 210.6 | 243.4 | 263.5 | 290.1 |
KW | 109 | 155 | 208 | 245 | 283 | 307 | 337 |
Comp. lnput Power×Qty (KW) | 34.7×1 | 47.7×1 | 63.2×1 | 71.2×1 | 82.4×1 | 89.9×1 | 99.9×1 |
Refrigerant | R22 |
Power Supply | 380V/ 3ph/ 50Hz |
Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection,
Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection. |
Number of Refrigeration Circuit | 1 |
Capacity Control (%) | 0, 50, 75, 100 |
Refrigerant Charge (Kg) | 30 | 42 | 56 | 68 | 78 | 84 | 93 |
Condenser | Ripple Aluminum Fins Around Copper Pipe |
Evaporator
| Dia.of Pipe (inch) | 2-1/2" | 3" | 3" | 3" | 4" | 4" | 4" |
Water Side Max Pressure (MPa) | 1 |
Chilled Water Flow(m3/h) | 18.7 | 26.7 | 35.7 | 42.1 | 48.7 | 52.7 | 58.0 |
Water Pressure drop (kPa) | 28 | 33 | 48 | 55 | 61 | 64 | 66 |
Axial Fan
| Air Flow×1000m3/h | 56.8 | 80.4 | 113.6 | 115.2 | 115.2 | 160.8 | 160.8 |
Power×Qty (KW) | 1.2×4 | 2.0×4 | 1.2×8 | 1.2×8 | 1.2×8 | 2.0×8 | 2.0×8 |
Running Noise dB(A) | 68 | 68 | 68 | 68 | 72 | 72 | 72 |
Total Weight (Kg) | 1160 | 1730 | 2590 | 2670 | 2750 | 2930 | 3160 |
Running Weight(Kg) | 1270 | 1920 | 2810 | 2900 | 3020 | 3240 | 3450 |
Description:
Working on central air conditioner system.
Compressor: Hanbell, , Refcomp, client can choose the compressor
Safety production Device:
Besides the features of tank water-cooled machine set, air blast
cooling chiller does not need extra cooling water tower and is easy
to install and
operate so that it is suitable for small production equipments.
Phase reversion protection, Phase lack protection, overload current
protection ,discharge air temp. protection,
low &high pressure protection.
Function:
Cooling capacity: 109~337kw Outlet water temp: -40~30C .
Refrigerant:R22/R407c/R134, client can choose the refrigerant/gas.
Cooling only unit/cooling-heating unit/ heat recovery.
1. Adopt the advanced screw type compressor, resistance low temp
and high efficiency
2. Electrical configuration adopt high –quality product of the
world to ensure that the unit stable quality and
reliable operation.
3. Adopt the glycol antifreeze as the cooling agent, freezing water
temp can be controlled at -40 degrees
Celsius.
4. Customer may request calcium chloride as an antifreeze.
Features:
1. Air cooled Water chiller adopt high-quality compressor , so it
is very safe and noiseless, economical in
power and durable
2. Air cooled chiller is deployed with high quality temperature
controller, it can control the temperature
between +5 ~+20 exactly
3. The designs of Air cooled Water chiller and radiator are unique,
so the heat exchange efficiency is very
high
4. Air cooled Water chiller is designed to be with current
over-laid protector, high voltage and low voltage
construction and electric time-delay safeguard, when malfunction
happened, it could alarm and show the
cause of the problem in time
5. Air cooled Water chiller with stable quality, long using life.
the chiller can operation more then 5 years
without main components problem, like compressor, heat exchanger.
6. Heat recovery can help user produce free hot water, which can be
55C
7. Air cooled Water chiller can be used in commercial AC, Massage
center, Hospital, Hotel, School, etc
8. Air cooled Water chiller with a Strong unit basefram ensured the
equipment stable operation
9. Air cooled Water chiller Adopt leading brand PLC, 64K color
touch screen etc. user friendly and easy
operation.
Product show:
HUALI air cooled chiller SAFETY PROTECTION
1) Phase reversion protection,
2) Phase lack protection,
3) Overload current protection,
4) Discharge air temp. protection,
5) Low & High pressure protection,
6) Low temp. protection,
7) Water flow protection.
HUALI air cooled chiller Major components
1. High efficiency and saving energy as compared with the dry-type,
it will save 10%-15% energy.
2. Performance stable, low noise and durable as adopt hanbell
screw-type compressor.
3. With high efficiency flooded shell and tube heat exchanges and
compressor, structure of the units is very
skill and the heat exchange capacity is very strong.
4. With advance throttle equipment, not only improving the
efficiency, but also protracting the use life.
5. The quantity of compressor can be one or two ,each compressor is
independent refrigeration system.
Each other run independently.when the one is working ,the other can
be working or not.
