Domestic Air Cooled Versus Water Cooled Chillers 380V / 3ph / 50Hz
Model HLWA~ | 110SH | 160SH | 210SH | 240SH | 280SH | 310SH | 340SH |
Rated Cooling
Capacity | X 1000Kcal/h | 93.6 | 133.6 | 178.7 | 210.6 | 243.4 | 263.5 | 290.1 |
KW | 109 | 155 | 208 | 245 | 283 | 307 | 337 |
Comp. lnput Power×Qty (KW) | 34.7×1 | 47.7×1 | 63.2×1 | 71.2×1 | 82.4×1 | 89.9×1 | 99.9×1 |
Refrigerant | R22 |
Power Supply | 380V / 3ph / 50Hz |
Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection,
Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection. |
Number of Refrigeration Circuit | 1 |
Capacity Control (%) | 0, 50, 75, 100 |
Refrigerant Charge (Kg) | 30 | 42 | 56 | 68 | 78 | 84 | 93 |
Condenser | Ripple Aluminum Fins Around Copper Pipe |
Evaporator
| Dia.of Pipe (inch) | 2-1/2" | 3" | 3" | 3" | 4" | 4" | 4" |
Water Side Max Pressure (MPa) | 1 |
Chilled Water Flow(m3/h) | 18.7 | 26.7 | 35.7 | 42.1 | 48.7 | 52.7 | 58.0 |
Water Pressure drop (kPa) | 28 | 33 | 48 | 55 | 61 | 64 | 66 |
Axial Fan | Air Flow×1000m3/h | 56.8 | 80.4 | 113.6 | 115.2 | 115.2 | 160.8 | 160.8 |
Power×Qty (KW) | 1.2×4 | 2.0×4 | 1.2×8 | 1.2×8 | 1.2×8 | 2.0×8 | 2.0×8 |
Running Noise dB(A) | 68 | 68 | 68 | 68 | 72 | 72 | 72 |
Total Weight (Kg) | 1160 | 1730 | 2590 | 2670 | 2750 | 2930 | 3160 |
Running Weight(Kg) | 1270 | 1920 | 2810 | 2900 | 3020 | 3240 | 3450 |
Heat Recovery |
|
Refrigerant Charge (Kg) | 32 | 44 | 59 | 71 | 80 | 87 | 96 |
Heat Reclaimed Volume (kw)
| X 1000Kcal/h | 28.1 | 40.1 | 53.6 | 63.2 | 73.0 | 79.1 | 87.0 |
KW | 33 | 47 | 62 | 73 | 85 | 92 | 101 |
Heat Recovery | Dia.of Pipe (inch) | 1-1/2" | 1-1/2" | 1-1/2" | 2" | 2" | 2" | 2" |
Water Side Max Pressure (MPa) | 1 |
Reclaimed Water Flow (m3/h) | 5.6 | 8.0 | 10.7 | 12.6 | 14.6 | 15.8 | 17.4 |
Water Pressure drop (kPa) | 24 | 23 | 27 | 27 | 26 | 26 | 26 |
Total Weight (Kg) | 1350 | 1930 | 2840 | 2960 | 3130 | 3240 | 3490 |
Running Weight(Kg) | 1480 | 2170 | 3100 | 3250 | 3380 | 3620 | 3860 |
Note:
- Rated Cooling Capacity Based on: DB Temperature 35℃/WB Temperature
24℃
Chilled water inlet/outlet temp. 12℃/7℃, Fouling factor:
0.088㎡.°C/KW. |
2. Chilled Water Range: 5～20℃; Lowest Ambient Temperature:15℃～43℃; |
3. Heat recovery unit water in/out temperature: 50℃/55℃; |
4.Changes of Specification for lmprovement May Be made without
Notice. |
Features:
1. Wide capacity range:
1) The various type units with range of cooling capacity from 109KW
– 337KW;
2) Each one has cooling only and cooling (heating) type;
3) There are integrity and modular structure;
4) Each one has regular computer control type and luxury computer
control type;
5) Provide optional components of auxiliary electrical
heater, build-in water pump, and paddle flow switch etc. according
to customer requirements.
6) The unit may use no-standard refrigerant. It may be low water
temperature type glycol for air cooled water
chiller unit, or double refrigerants unit, air cooled compress
condensing unit, etc. Please contact us for detail.
The unit has high efficient, less energy consume, and low operating
fee features.
2. Huali Company use brand high EER semi-hermetic type compressor,
condenser, and cooling accessories
from world and adopt advance technology in air conditioning and
control. High quality process equipments
and testing-center to ensure the units have energy saving and
reliable features.
3. Unit protection components
The units have thermal protection switch, overload relay, high/low
pressure switch, paddle flow switch and
delay-starting protection devices to ensure unit runs under safety,
reliable working condition and unit is easy to
maintain and repairing.
- Super low noise, operating quietly
1) Semi-hermetic compressor has operating steady, low noise, and
less vibration features.
2) Brand condensing. The unit structure is simply with good air
dynamic features and to ensure fan works
under low noise and high efficiency.

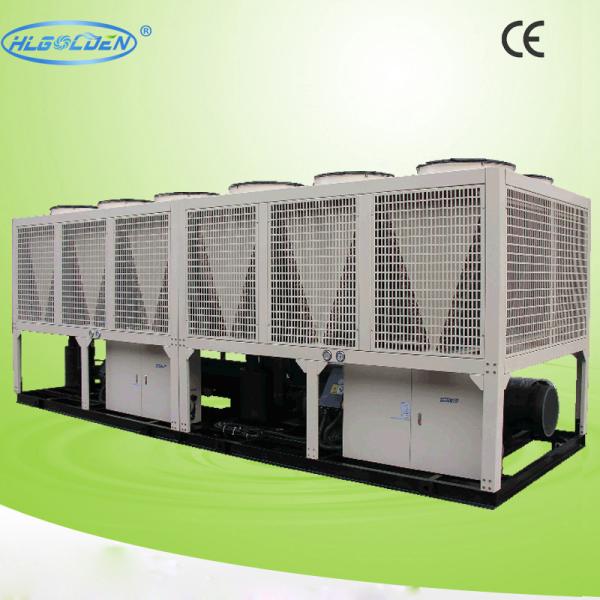

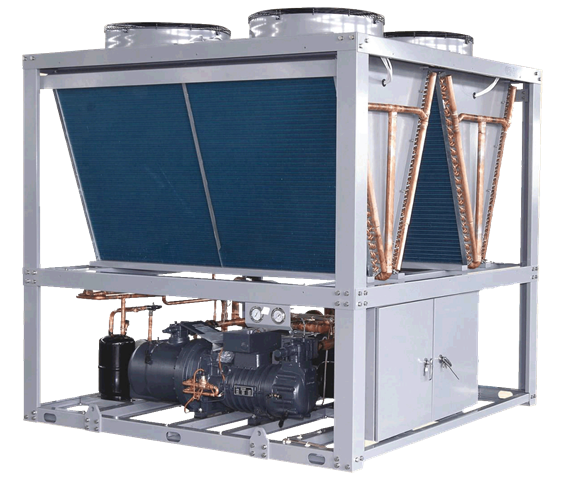

Product show:
