41.2KW 10HP Industrial Water Chiller For Injection Molding Machine
Product Description:
1. Applied imported high grade compressor and water pump, which are
safe and tranquil,
electricity-saving and endurance;
2. The water chiller is deployed with Italy temperature controller,
it can control the temperature
between +5°C and 20°C exactly.
3. The heat exchange efficiency of water chiller is very high;
4. The water chiller is designed to be with Phase reversion
protection, Phase lack protection, Overload
current protection, discharge air temp. protection, Low & High
pressure protection, Low temp.
protection, Water flow protection, when malfunction happened, it
could alarm and show the cause
of the problem in time.
5. With stainless steel water tank, it is very convenience purify;
6. This series Industrial water chiller can customize base on the
requirement.
Product Function:
Compressor:
Featured brands imported semi-closed and semi-hermetic screw
compressor reciprocating. Performance
and low noise. Based on customer needs and cooling tonnage size, or
the use of stand-alone package.
Compressor load can automatically alternate operation, to balance
the number of compressor run-time,
greatly extended the deadline for the use of chillers.
Evaporator:
Copper evaporator to enhance the use of internal and external
screw-type tube. Threaded brass surface, brass
outer surface smooth, cooling effect, and to Cylinder body
evaporator insulation board 25mm thick PE
insulation, non-condensing, less loss of cooling capacity.
Protection device:
Protection systems are installed with: temperature control switch,
fusible bolt, high-low pressure switch, with
phase reversion protection, phase lack protection, overload current
protection, discharge air temp.
protection, Low & High pressure protection, low temp. protection,
water flow protection.
Computer-controlled system:
Developed intelligent PLC, PC-class computer-controlled system, can
do remote monitoring and control, simple operation, the host and
power
connections.
Failure rate is low and a high factor of safety, simple
installation. System control are available for immediate
adjustment, intuitive and reliable.
Product Detail:
Model HLLW ～ | 03SPI | 05SPI | 08SPI | 10SPI | 12.5SPI |
Rated Cooling Capacity | ×1000 kcal/h | 8.8 | 14.1 | 22.9 | 30.4 | 35.4 |
KW | 10.2 | 16.4 | 26.6 | 35.3 | 41.2 |
Input Power (KW) | 2.85 | 4.3 | 6.3 | 7.9 | 9.3 |
Comp. Input Power×Qty. (KW) | 2.1 | 3.55 | 5.2 | 6.8 | 7.8 |
Chilled Water Pump Power (KW) | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 |
Comp. Current (A) | 5.3 | 8.4 | 12.6 | 16.2 | 18.1 |
Power Supply | 3φ-380V-50HZ |
Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection, |
Number of Refrigeration Circuit | 1 |
Capacity Control (%) | 0, 100 |
Refrigerant | R22 |
Condenser | Shell and Tube Type |
Water Side Max Pressure (MPa) | 1 |
Dia. of Pipe to Condenser (inch) | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2" |
Cooling Water Flow (L/m) | 35.3 | 57.2 | 91.2 | 120.6 | 140.5 |
Condenser Water Pressure drop (kPa) | 21 | 22 | 23 | 29 | 31 |
Evaporator | Pipe Coil Type | Shell and Tube Type |
Water Side Max Pressure (MPa) | - | 1 |
Dia.of Pipe to Evaporator (inch) | 1" | 1" | 1-1/2" | 1-1/2" | 2" |
Chilled Water Flow (L/m) | 29.2 | 47.0 | 76.4 | 101.2 | 118.1 |
Evaporator Water Pressure drop (kPa) | - | 17 | 23 | 28 |
Running Noise dB(A) | 54 | 56 | 66 | 72 | 72 |
Tank Volume (L) | 80 | 80 | 180 | 180 | 180 |
Total weight (Kg) | 120 | 160 | 430 | 460 | 500 |
Dimension L×W×H | 850×550×1050 | 1400×850×1180 |

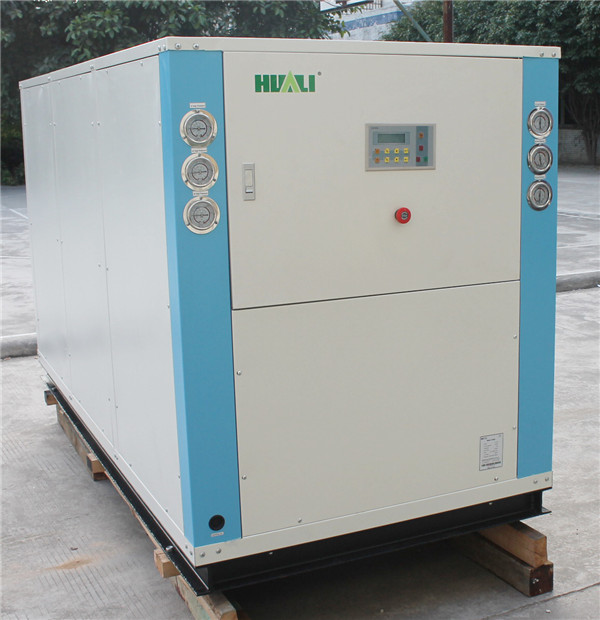

Product Show:
